I’ve used the installer v0.3.0 on Linux to flash IodéOS 7.4-20260401 on my Moto G32 (devon).
As I’m coming from LineageOS, I came across the “OEM unlocking” issue, for which I’ve documented the workaround in this comment.
Do you recommend always starting from the stock ROM to install Iodé? Because Lineage makes that requirement explicit in its installation docs.

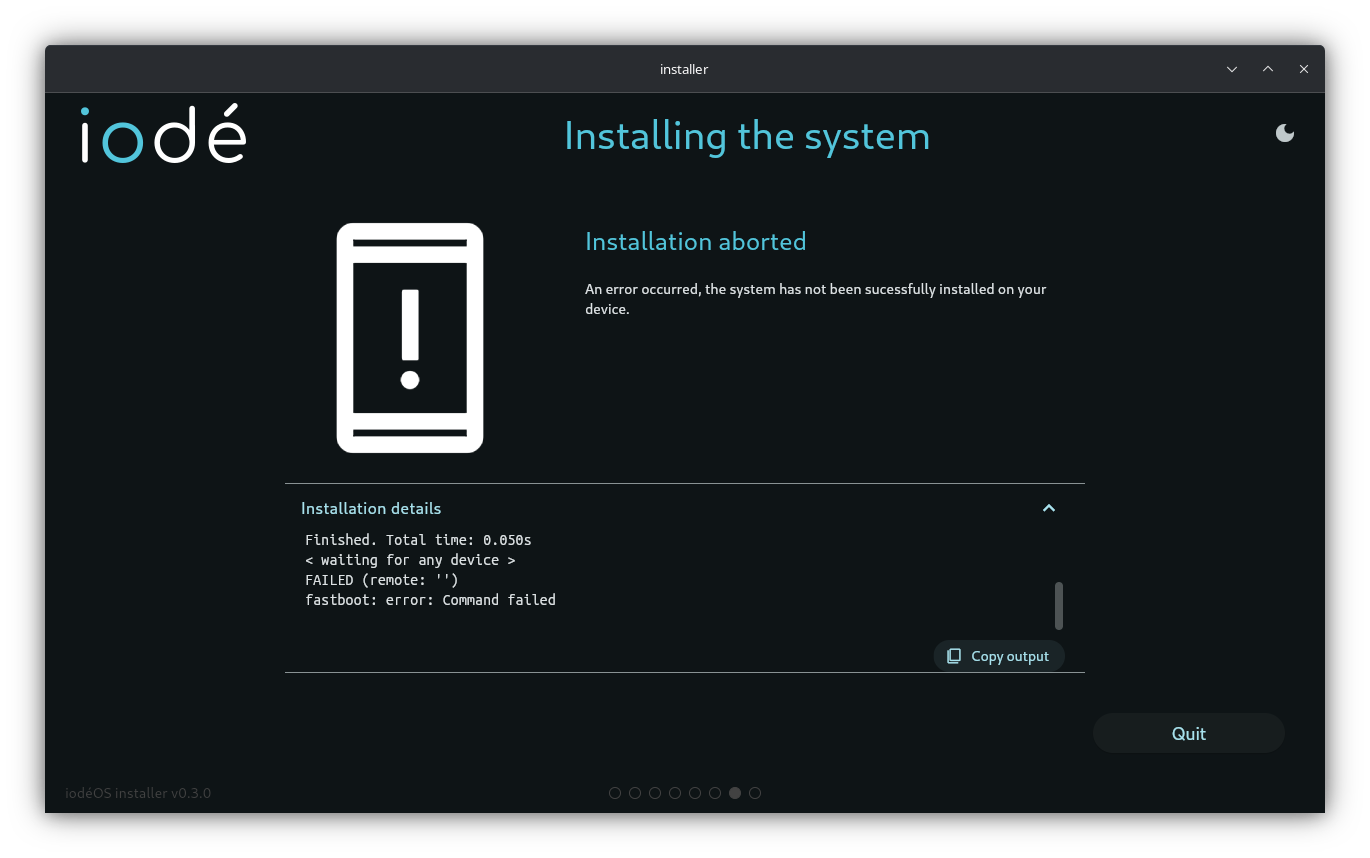

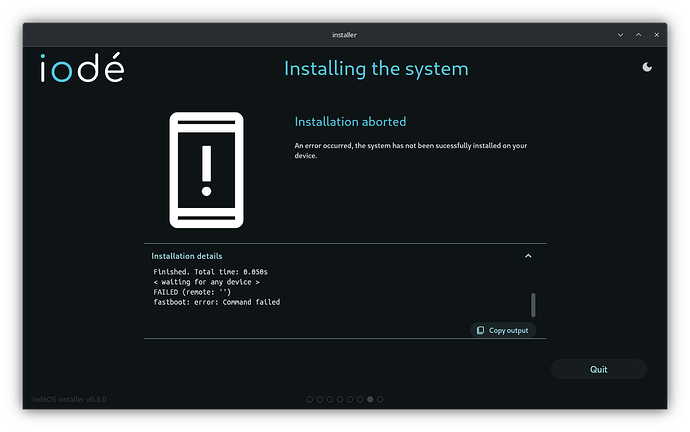

If I don’t quickly respond to the bootloader lock prompt, installation ends with an error, even though the system was successfully installed (with an unlocked bootloader) at that point.
Logs
Setting current slot to 'a' OKAY [ 0.378s]
Finished. Total time: 0.378s
Erasing 'avb_custom_key' OKAY [ 0.015s]
Finished. Total time: 0.018s
Warning: skip copying avb_custom_key image avb footer (avb_custom_key partition size: 0, avb_custom_key image size: 1032).
Sending 'avb_custom_key' (1 KB) OKAY [ 0.001s]
Writing 'avb_custom_key' OKAY [ 0.014s]
Finished. Total time: 0.017s
Warning: userdata type is raw, but f2fs was requested for formatting.
F2FS-tools: mkfs.f2fs Ver: 1.16.0 (2023-04-11)
Info: Debug level = 1
Info: Trim is disabled
Info: Set conf for android
Info: Enable Project quota
Info: not exist /proc/version!
Info: Segments per section = 1
Info: Sections per zone = 1
Info: sector size = 512
Info: total sectors = 230928344 (112757 MB)
Info: block size = 4096
Info: zone aligned segment0 blkaddr: 512
Info: add quota type = 0 => 4
Info: add quota type = 1 => 5
Info: add quota type = 2 => 6
Info: format version with
"6.19.11-200.fc43.x86_64"
[f2fs_init_sit_area: 743] Filling sit area at offset 0x00600000
[f2fs_init_nat_area: 777] Filling nat area at offset 0x01200000
[f2fs_add_default_dentry_root:1393] Writing default dentry root, at offset 0x1d800
[f2fs_write_root_inode:1439] Writing root inode (hot node), offset 0x1d200
[f2fs_write_default_quota:1531] Writing quota data, at offset 0001d801 (1/2)
[f2fs_write_default_quota:1531] Writing quota data, at offset 0001d802 (2/2)
[f2fs_write_qf_inode:1582] Writing quota inode (hot node), offset 0x1d201
[f2fs_write_default_quota:1531] Writing quota data, at offset 0001d803 (1/2)
[f2fs_write_default_quota:1531] Writing quota data, at offset 0001d804 (2/2)
[f2fs_write_qf_inode:1582] Writing quota inode (hot node), offset 0x1d202
[f2fs_write_default_quota:1531] Writing quota data, at offset 0001d805 (1/2)
[f2fs_write_default_quota:1531] Writing quota data, at offset 0001d806 (2/2)
[f2fs_write_qf_inode:1582] Writing quota inode (hot node), offset 0x1d203
[f2fs_update_nat_default:1620] Writing nat root, at offset 0x00001200
Info: Overprovision ratio = 0.430%
Info: Overprovision segments = 246 (GC reserved = 239)
[f2fs_write_check_point_pack: 969] Writing main segments, cp at offset 0x00000200
[f2fs_write_check_point_pack:1056] Writing Segment summary for HOT/WARM/COLD_DATA, at offset 0x00000201
[f2fs_write_check_point_pack:1070] Writing Segment summary for HOT_NODE, at offset 0x00000202
[f2fs_write_check_point_pack:1082] Writing Segment summary for WARM_NODE, at offset 0x00000203
[f2fs_write_check_point_pack:1096] Writing Segment summary for COLD_NODE, at offset 0x00000204
[f2fs_write_check_point_pack:1104] Writing cp page2, at offset 0x00000205
[f2fs_write_check_point_pack:1146] Writing cp page 1 of checkpoint pack 2, at offset 0x00000400
[f2fs_write_check_point_pack:1165] Writing cp page 2 of checkpoint pack 2, at offset 0x00000405
[f2fs_write_super_block:1198] Writing super block, at offset 0x00000000
Info: format successful
Warning: skip copying userdata image avb footer due to sparse image.
Sending 'userdata' (89 KB) OKAY [ 0.003s]
Writing 'userdata' (bootloader) flash permission denied
FAILED (remote: '')
fastboot: error: Command failed
Warning: skip copying modem_a image avb footer due to sparse image.
Sending 'modem_a' (75520 KB) OKAY [ 1.619s]
Writing 'modem_a' OKAY [ 0.344s]
Finished. Total time: 1.968s
--------------------------------------------
Bootloader Version...: MBM-3.0-devon_g-8847829342a-250806
Baseband Version.....: HAK11_15.154.01.90R DEVON_LATAMDSDS_CUST
Serial Number........: ZF523ZDDH7
--------------------------------------------
extracting android-info.txt (0 MB) to RAM...
Checking 'product' OKAY [ 0.000s]
Setting current slot to 'a' OKAY [ 0.228s]
extracting fastboot-info.txt (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to disk... took 0.000s
(bootloader) super-partition-name: not found
Writable partitions are not supported
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting super_empty.img (0 MB) to RAM...
extracting boot.img (96 MB) to disk... took 0.205s
archive does not contain 'boot.sig'
extracting super_empty.img (0 MB) to RAM...
Sending 'boot_a' (98304 KB) OKAY [ 2.063s]
Writing 'boot_a' OKAY [ 1.296s]
extracting super_empty.img (0 MB) to RAM...
extracting dtbo.img (24 MB) to disk... took 0.049s
archive does not contain 'dtbo.sig'
extracting super_empty.img (0 MB) to RAM...
Sending 'dtbo_a' (24576 KB) OKAY [ 0.515s]
Writing 'dtbo_a' OKAY [ 0.126s]
extracting super_empty.img (0 MB) to RAM...
extracting vendor_boot.img (96 MB) to disk... took 0.166s
archive does not contain 'vendor_boot.sig'
extracting super_empty.img (0 MB) to RAM...
Sending 'vendor_boot_a' (98304 KB) OKAY [ 2.052s]
Writing 'vendor_boot_a' OKAY [ 0.506s]
extracting super_empty.img (0 MB) to RAM...
extracting vbmeta.img (0 MB) to disk... took 0.000s
archive does not contain 'vbmeta.sig'
extracting super_empty.img (0 MB) to RAM...
Sending 'vbmeta_a' (8 KB) OKAY [ 0.001s]
Writing 'vbmeta_a' OKAY [ 0.008s]
extracting super_empty.img (0 MB) to RAM...
extracting vbmeta_system.img (0 MB) to disk... took 0.000s
archive does not contain 'vbmeta_system.sig'
extracting super_empty.img (0 MB) to RAM...
Sending 'vbmeta_system_a' (4 KB) OKAY [ 0.001s]
Writing 'vbmeta_system_a' OKAY [ 0.008s]
Rebooting into fastboot OKAY [ 0.001s]
< waiting for any device >
extracting super_empty.img (0 MB) to disk... took 0.000s
Sending 'super' (4 KB) OKAY [ 0.001s]
Updating super partition OKAY [ 0.035s]
Resizing 'system_a' OKAY [ 0.007s]
Resizing 'system_ext_a' OKAY [ 0.007s]
Resizing 'product_a' OKAY [ 0.007s]
Resizing 'vendor_a' OKAY [ 0.007s]
extracting super_empty.img (0 MB) to RAM...
extracting system.img (965 MB) to disk... took 2.856s
archive does not contain 'system.sig'
Resizing 'system_a' OKAY [ 0.007s]
Invalid sparse file format at header magic
Sending sparse 'system_a' 1/4 (262100 KB) OKAY [ 5.722s]
Writing 'system_a' OKAY [ 0.657s]
Sending sparse 'system_a' 2/4 (262048 KB) OKAY [ 5.703s]
Writing 'system_a' OKAY [ 0.667s]
Sending sparse 'system_a' 3/4 (261940 KB) OKAY [ 5.713s]
Writing 'system_a' OKAY [ 0.760s]
Sending sparse 'system_a' 4/4 (199356 KB) OKAY [ 4.358s]
Writing 'system_a' OKAY [ 0.678s]
extracting super_empty.img (0 MB) to RAM...
extracting system_ext.img (483 MB) to disk... took 1.490s
archive does not contain 'system_ext.sig'
Resizing 'system_ext_a' OKAY [ 0.006s]
Invalid sparse file format at header magic
Sending sparse 'system_ext_a' 1/2 (262028 KB) OKAY [ 5.719s]
Writing 'system_ext_a' OKAY [ 0.716s]
Sending sparse 'system_ext_a' 2/2 (231464 KB) OKAY [ 5.035s]
Writing 'system_ext_a' OKAY [ 0.631s]
extracting super_empty.img (0 MB) to RAM...
extracting product.img (1152 MB) to disk... took 3.751s
archive does not contain 'product.sig'
Resizing 'product_a' OKAY [ 0.007s]
Invalid sparse file format at header magic
Sending sparse 'product_a' 1/5 (261960 KB) OKAY [ 5.737s]
Writing 'product_a' OKAY [ 0.741s]
Sending sparse 'product_a' 2/5 (262044 KB) OKAY [ 5.739s]
Writing 'product_a' OKAY [ 0.708s]
Sending sparse 'product_a' 3/5 (262052 KB) OKAY [ 5.721s]
Writing 'product_a' OKAY [ 0.701s]
Sending sparse 'product_a' 4/5 (261845 KB) OKAY [ 5.713s]
Writing 'product_a' OKAY [ 0.762s]
Sending sparse 'product_a' 5/5 (127928 KB) OKAY [ 2.799s]
Writing 'product_a' OKAY [ 0.397s]
extracting super_empty.img (0 MB) to RAM...
extracting vendor.img (500 MB) to disk... took 1.484s
archive does not contain 'vendor.sig'
Resizing 'vendor_a' OKAY [ 0.006s]
Invalid sparse file format at header magic
Sending sparse 'vendor_a' 1/2 (261841 KB) OKAY [ 5.722s]
Writing 'vendor_a' OKAY [ 0.771s]
Sending sparse 'vendor_a' 2/2 (247684 KB) OKAY [ 5.409s]
Writing 'vendor_a' OKAY [ 0.687s]
Finished. Total time: 121.314s
Erasing 'userdata' OKAY [ 5.027s]
Finished. Total time: 5.035s
Sending 'abl_a' (332 KB) OKAY [ 0.008s]
Writing 'abl_a' OKAY [ 0.006s]
Finished. Total time: 0.030s
Warning: skip copying bluetooth_a image avb footer due to sparse image.
Sending 'bluetooth_a' (792 KB) OKAY [ 0.020s]
Writing 'bluetooth_a' OKAY [ 0.008s]
Finished. Total time: 0.402s
Sending 'devcfg_a' (123 KB) OKAY [ 0.004s]
Writing 'devcfg_a' OKAY [ 0.006s]
Finished. Total time: 1.659s
Sending 'dsp_a' (32768 KB) OKAY [ 0.726s]
Writing 'dsp_a' OKAY [ 0.087s]
Finished. Total time: 0.881s
Warning: skip copying fsg image avb footer (fsg partition size: 0, fsg image size: 18472960).
Sending 'fsg' (18040 KB) OKAY [ 0.403s]
Writing 'fsg' FAILED (remote: 'No such file or directory')
fastboot: error: Command failed
Sending 'hyp_a' (507 KB) OKAY [ 0.012s]
Writing 'hyp_a' OKAY [ 0.012s]
Finished. Total time: 0.044s
Sending 'keymaster_a' (507 KB) OKAY [ 0.013s]
Writing 'keymaster_a' OKAY [ 0.008s]
Finished. Total time: 0.041s
Sending 'logo_a' (10544 KB) OKAY [ 0.236s]
Writing 'logo_a' OKAY [ 0.051s]
Finished. Total time: 0.337s
Sending 'prov_a' (251 KB) OKAY [ 0.007s]
Writing 'prov_a' OKAY [ 0.007s]
Finished. Total time: 0.031s
Sending 'qupfw_a' (75 KB) OKAY [ 0.002s]
Writing 'qupfw_a' OKAY [ 0.006s]
Finished. Total time: 0.024s
Sending 'rpm_a' (507 KB) OKAY [ 0.013s]
Writing 'rpm_a' OKAY [ 0.009s]
Finished. Total time: 0.038s
Sending 'storsec_a' (123 KB) OKAY [ 0.004s]
Writing 'storsec_a' OKAY [ 0.009s]
Finished. Total time: 0.029s
Sending 'tz_a' (4091 KB) OKAY [ 0.094s]
Writing 'tz_a' OKAY [ 0.021s]
Finished. Total time: 0.134s
Sending 'uefisecapp_a' (2043 KB) OKAY [ 0.053s]
Writing 'uefisecapp_a' OKAY [ 0.018s]
Finished. Total time: 0.096s
Sending 'xbl_config_a' (251 KB) OKAY [ 0.007s]
Writing 'xbl_config_a' OKAY [ 0.018s]
Finished. Total time: 0.044s
Sending 'xbl_a' (5115 KB) OKAY [ 0.120s]
Writing 'xbl_a' OKAY [ 0.054s]
Finished. Total time: 0.193s
Rebooting into bootloader OKAY [ 0.000s]
Finished. Total time: 0.050s
< waiting for any device >
FAILED (remote: '')
fastboot: error: Command failed
A question about the Iodé (network blocking) app: does it impact system performance in any noticeable way? For instance, I’ve noticed some extreme stutters and freezes while downloading a few torrents with LibreTorrent, which didn’t ever happen on LineageOS. I’m disabling blocking while torrenting for now on.
IodéOS is also affected by this LineageOS issue, which makes recent apps constantly have to reload and lose their state while multitasking, and eventually leading to a system reboot. A few other Motorola users have confirmed it, but the maintainers haven’t replied yet. An Iodé devon user reported no such issues, though. If you’re a devon user, please leave your feedback.
My guess is that this is the work of an overly aggressive out-of-memory killer that closes any apps that haven’t been focused for a minute or more. It only starts happening after some uptime and moderate multitasking — never in the first few hours following a reboot. RAM usage reported by the system show a decent amount of free memory.
All I know is that the last version of CalyxOS (based on Android 15) is unaffected, because I’ve used it for almost a year, running the same apps I do now. So far, every Android 16 build I’ve tried has this issue.
